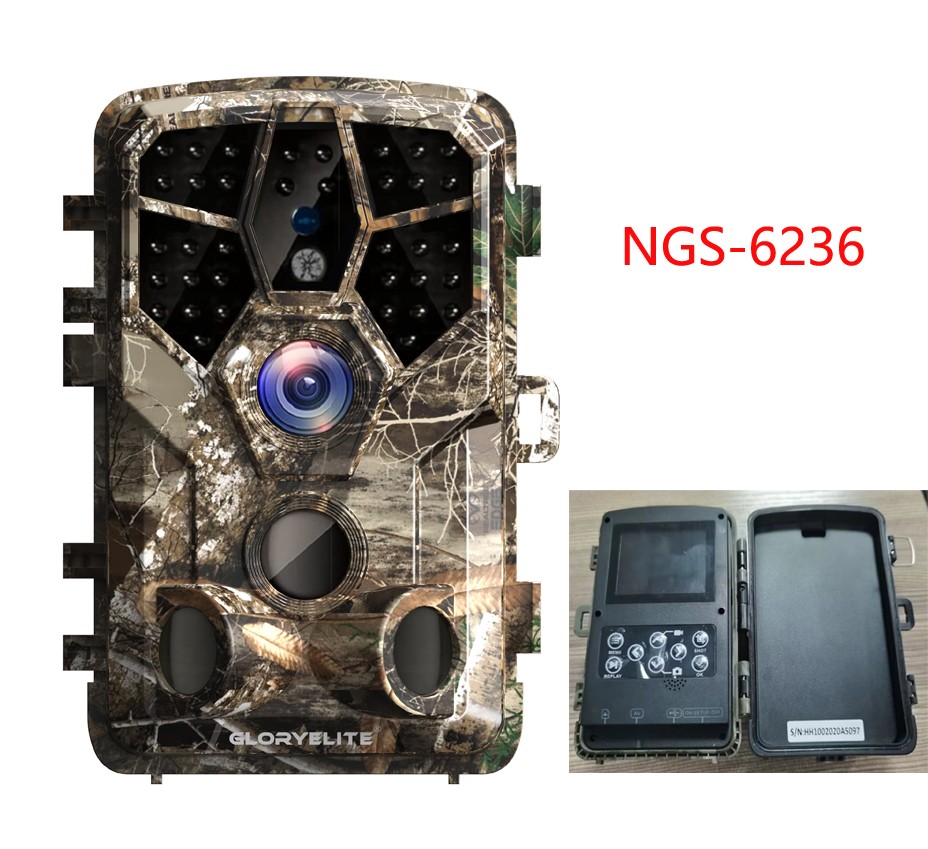

NGS-6236 Hunting Camera
NGS-6236 Hunting Camera
Specifications/ Characteristic:
Product Dimension ：138*97*67mmH
Net Weight ： 360g
Standard color ： Camouflage and Black
Operation Keypad ： 8 Keys, 1 Switch
Image Sensor ： 3 Mega Pixels Color CMOS Sensor
PIR Sensor Detection angle：120 Degrees
Trigger Speed ：0.5sec（0.2-0.6s，）
PIR Sensitivity： 3 sensitivity levels: High/Normal/Low
PIR Sensing Distance：70ft/22m （ Below 77°F/25℃ at the Normal Level）
Triggering Interval ：5sec ~ 60mins
Lens ：F=2.0 FOV=90O Auto IR-Cut
Display system：TFT LCD
Panel Dimension ： 2.31 Inch
Display color ： Full color
Number of dots ： 480*234
Range of IR flash： 22m
Number of IR LED： 44pcs 940nm IR LED ,Auto IR-CUT
File format Photo: JPG; Video: AVI
Selectable Video Resolution： 1920×1080,1280×720,720×480,640×480,320×240
Frame speed ： 30 fps
Selectable Image Resolution
24mp:5600X4200；20MP:5200X3900；
16MP:4608X3456；12MP:4000X3000；
8MP:3264X2448；5MP:2592X1944；
3MP:2048X1536；1MP :1280X960；
Shooting Numbers： 1~3pcs
Effectiveness ：Daytime:1m-infinitive; Night time:1m-15m
Camera+Video ： First take Picture then Video
Time Stamp ： On/Off; Include serial No., temperature and moon phase
Timer ： On/Off; Time Lapse Programmable
Periodic Shooting Time Lapse: 1 Second ~ 24Hours
Device Serial No.： 4 digits and 26 alphabets set by yourself
Password ： 4-Digit Numbers
Built-in Microphone ：Yes
Built in Speaker ： Yes
Auto-distinguish images： Color images in daytime/black & white night images
TF Card Storage ： Stop saving /Cycle storage (when the TF card is full)
Battery type： 4×AA (Expandable to 8×AA)
Other power ： DC 6V or USB 5V
Standby Current ： Less than 0.1mA
Standby time： 3-6 Months(4×AA Or 8×AA)
Interface ： Micro USB2.0, TF CARD,6V DC External
External memory ： TF card up to 32GB
Waterproof ： IP protection class66
Language:English,Chinese,French,Norwegian,Deutsch,Spanish,Portuguese,Japanese,Russian,Finnish,Italian,Czech,Romanian,Svenska,Korean
Operation Temperature： -20℃~+70℃
